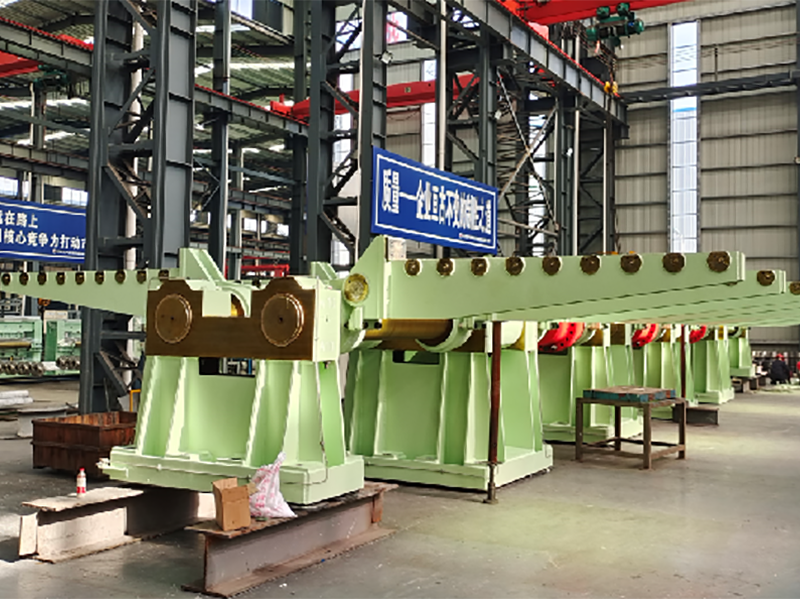

The turning machine is usually installed in the finishing section between the medium and thick plate cars. It turns the steel plate from one side to the other, turning the lower surface of the steel plate into the upper surface, in order to check the surface quality of the steel plate. This turning machine is a double-arm crank rocker type turning machine. The motor reducer provides the power of low speed and high torque by the two crank linkage mechanisms respectively drive the rotation of the flip arm and the plate arm to achieve the flip of the steel plate.

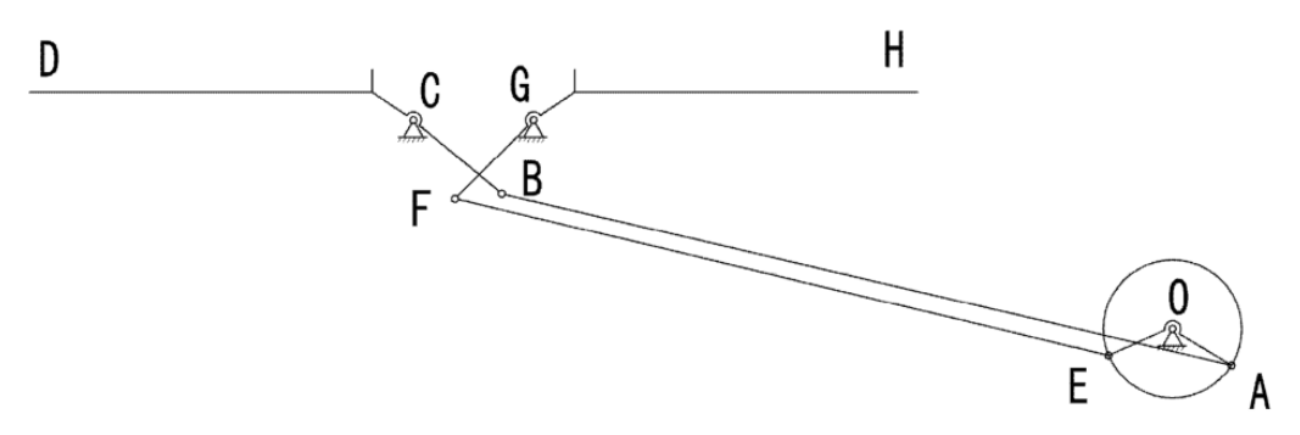

The utility model relates to a medium and thick plate turning machine, wherein the motor and the reducer are installed on the base and the motor drives the reducer to rotate: the pull rod crank and the push rod crank are connected to the output shaft of the reducer, and the push rod and the pull rod are hinged with the pull rod crank and the push rod crank respectively; The two ends of the rod rollover arm shaft and the push rod rollover arm shaft are supported on the base of the executive device, the rod rollover arm and the push rod rollover arm shaft are fixed connected with the rod rollover arm shaft and the push rod rollover arm shaft, the rod connecting plate and the push rod connecting plate one end is hinged with the push rod and the pull rod rollover arm shaft, and the other end is connected with the rod rollover arm shaft and the push rod rollover arm shaft to form two crank rocker mechanism. The utility model has the advantages that, by adjusting the length of the push rod and the pull rod, the process of the swing arm of the pull rod and the hand plate of the push rod can be adjusted, so that the impact force is smaller and the hand plate is more stable and reliable; Continuous rotation of the motor in the same direction can achieve continuous flipping.

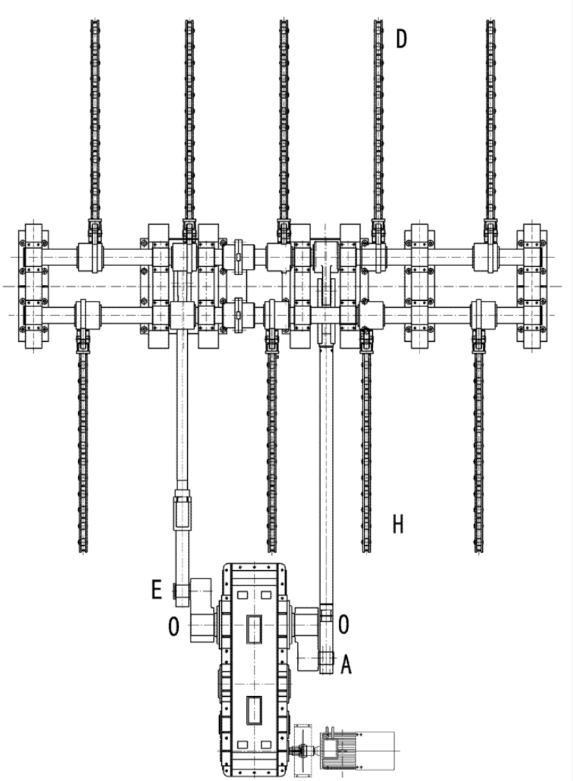

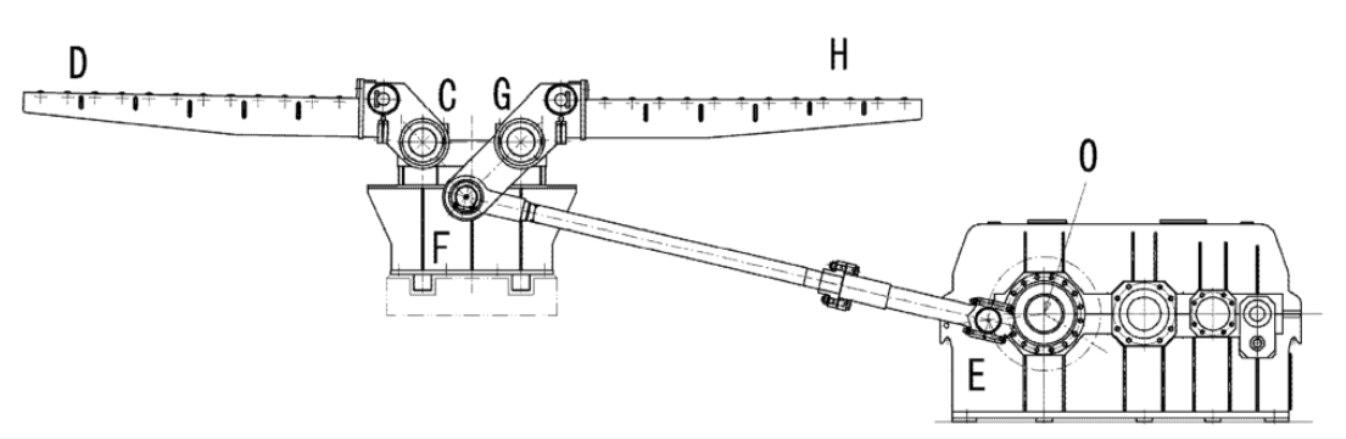

Medium and thick plate turning machine structure: including driving device, transmission device and executive device three parts, driving device including base, motor and reducer, motor and reducer installed on the base, motor drive reducer rotation; The transmission device comprises a pull rod crank, push rod crank, push rod and pull rod, the pull rod crank and push rod crank are connected to the output shaft of the reducer, and the push rod and pull rod are respectively sliding connected with the pull rod crank and push rod crank; The actuator comprises an actuator base, a tie rod turning arm, a push rod turning arm shaft, a tie rod turning arm shaft and a push rod turning arm shaft, both ends of the tie rod turning arm shaft and the push rod turning arm shaft are supported on the actuator base, and the tie rod turning arm and the push rod turning arm shaft are respectively fixed connected with the tie rod turning arm shaft and the push rod turning arm shaft, which is characterized in that the transmission device also comprises a tie rod connecting plate and a push rod One end of the connecting plate and the push-rod connecting plate are hinged with the push rod and the pull rod respectively, and the other end is connected with the pull rod turning arm shaft and the push rod turning arm shaft respectively, and the connection between the connecting plate and the turning arm shaft is interference fit connection: the installation Angle of the pull rod crank and the push rod crank differs by 120°; The pull rod crank, the pull rod, the pull rod connecting plate, the pull rod turning arm and the pull rod turning arm shaft form the pull rod crank rocker mechanism OEFG, and the push rod crank, the push rod, the push rod connecting plate, the push rod turning arm and the push rod turning arm shaft form the push rod crank rocker mechanism OABC.
